SMD P1.25 SMD P1.53 SMDP1.86 SMD P2.0 SMD P2.5 SMD P3.076 SMD P4 SMD P5
模组型号:P1.25 ,P1.53,P1.86,P2.0,P2.5,P3.076,P4,P5

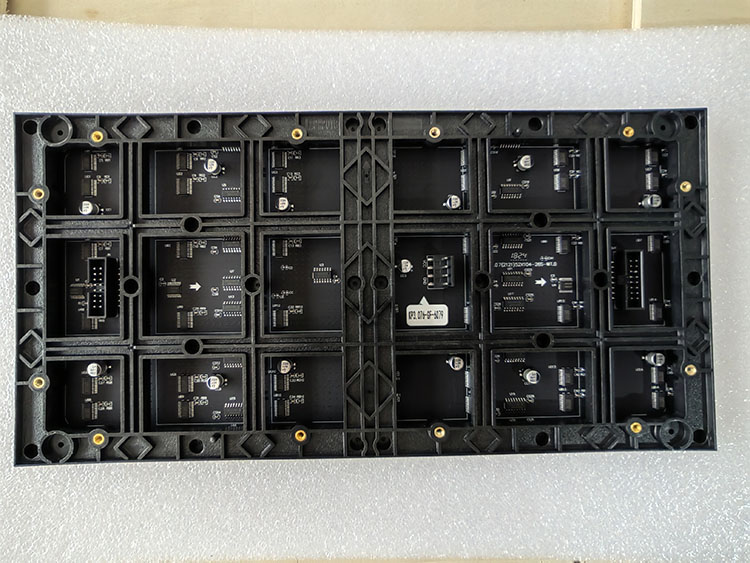

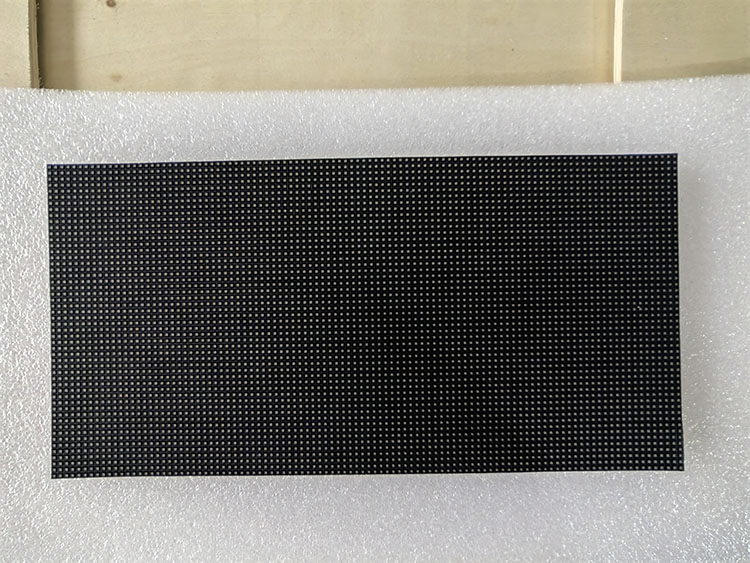

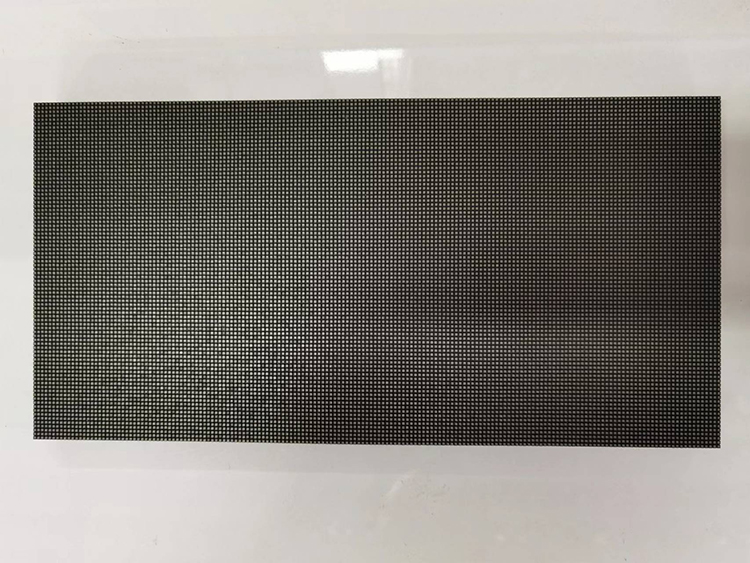

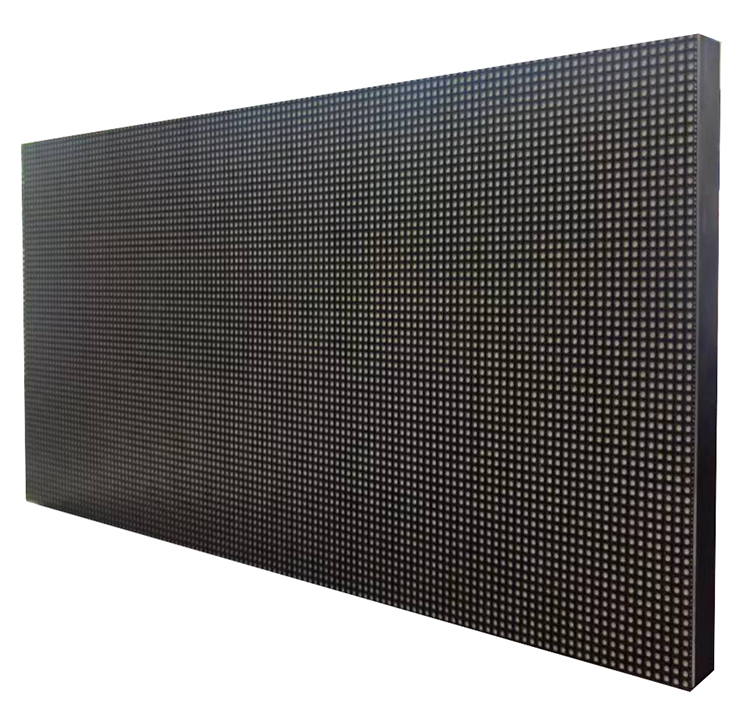

P1.25 P1.53 P1.86 模组图

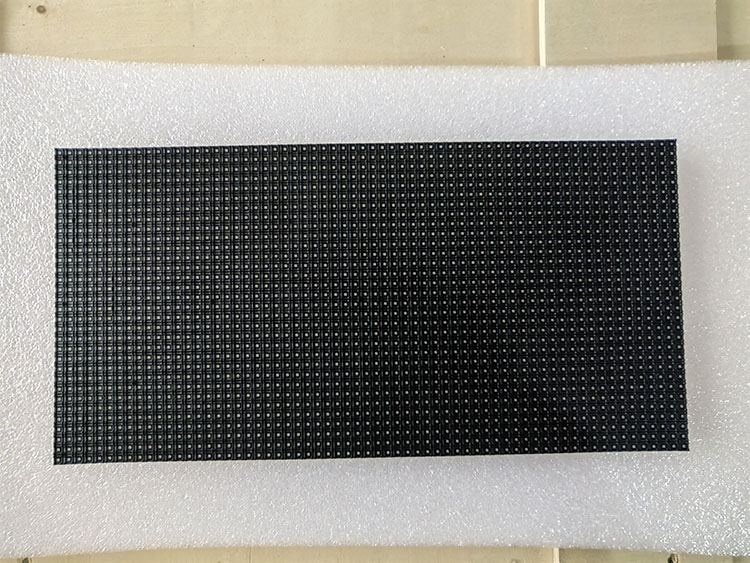

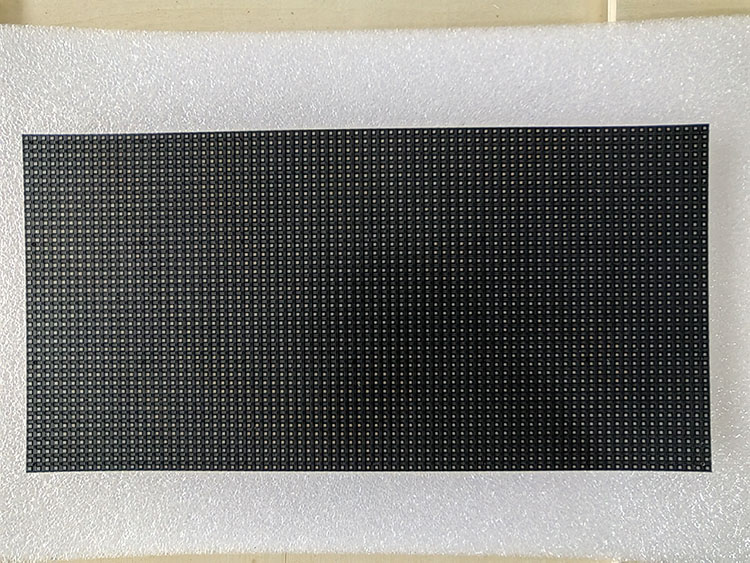

P2.0 模组图

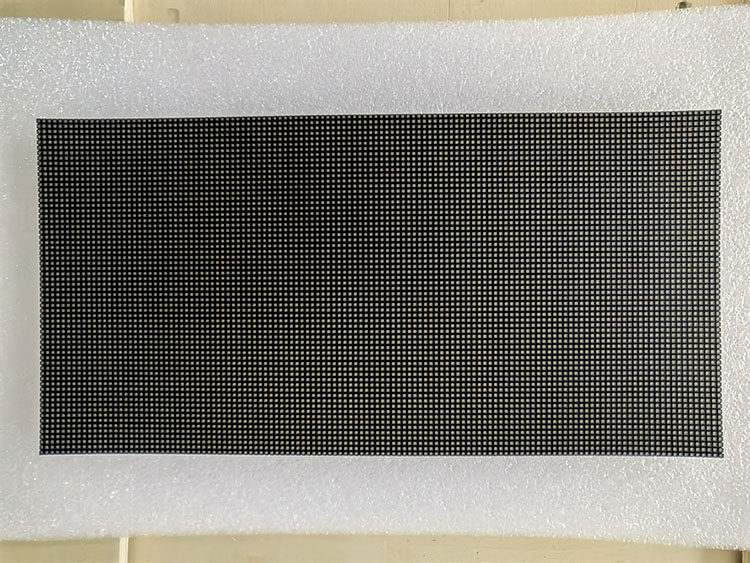

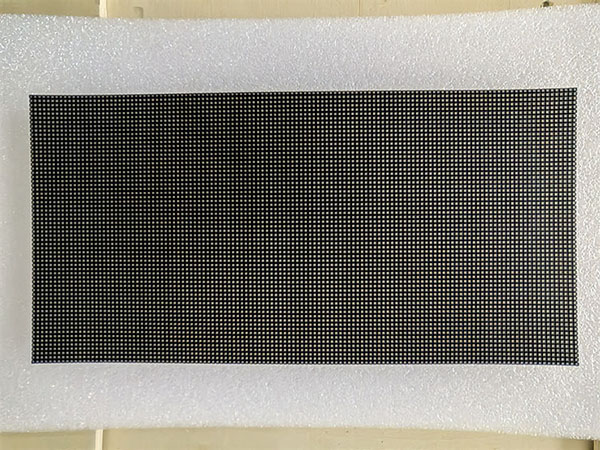

P2.5模组图

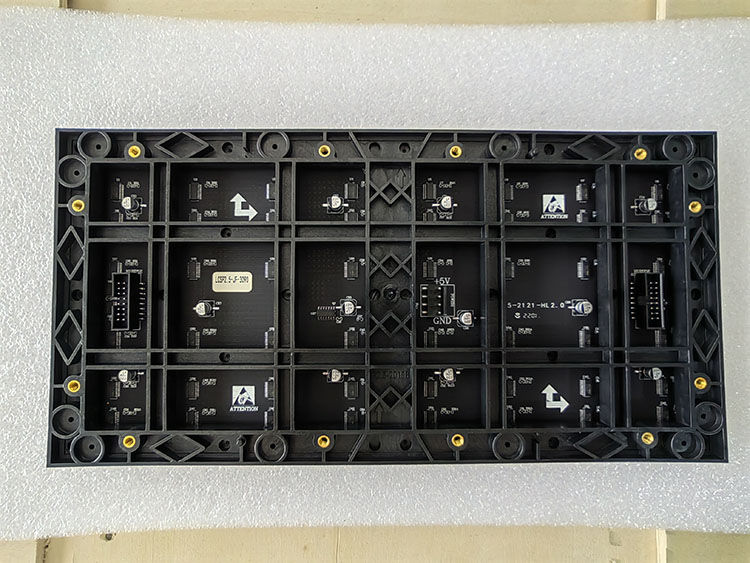

P3.076 模组图

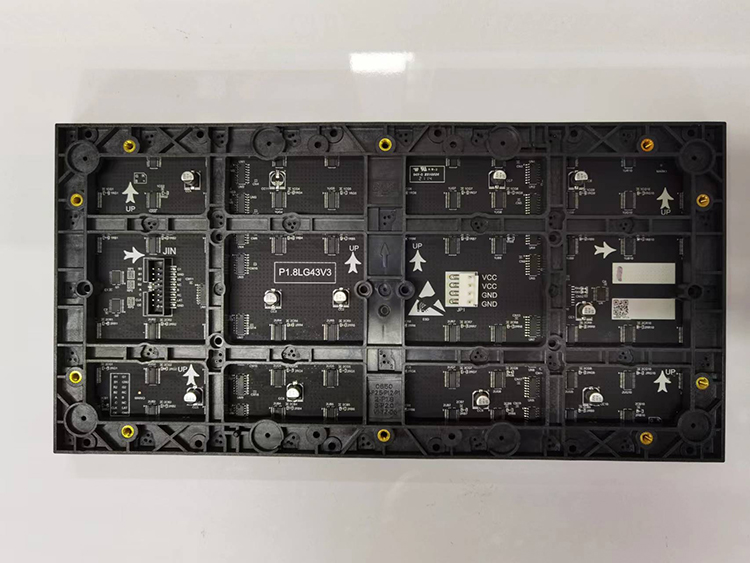

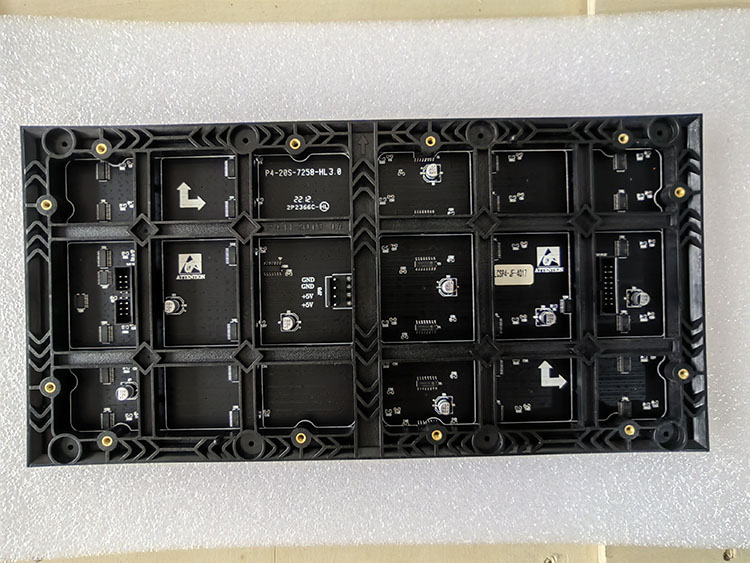

P4 模组图

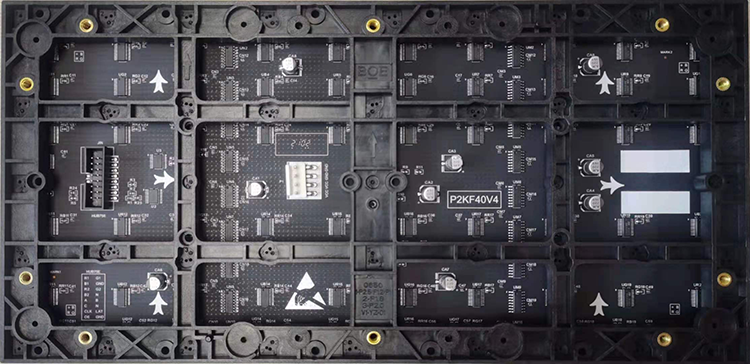

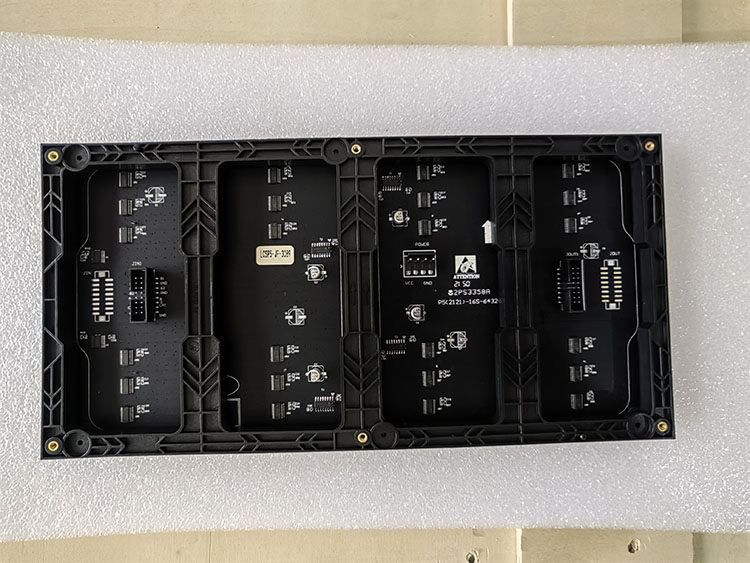

P5 模组图
| 分项Item | 技术参数 Technical parameter | ||||||||
|
型号 Type |
PH1.25 | PH1.53 | PH1.86 | PH2.0 | PH2.5 | PH3.076 | PH4 | PH5 | |
| 单元板尺寸 Dimension | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | |
|
点间距离 Pixel pitch |
1.25mm | 1.53mm | 1.86mm | 2.0 mm | 2.5 mm | 3.076mm | 4mm | 5mm | |
| 单 |
物理密度 Pixel Density |
640000/ M2 | 422500/ M2 | 288906/ M2 | 250000/ M2 | 160000/ M2 | 105625/ M2 | 62500/ M2 | 40000/ M2 |
| 元 |
发光点颜色 Pixel configuration |
1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| 板 |
灯体 LED specification |
SMD1010（HG） | SMD1212（HG） | SMD1515（HG） | SMD1515（HG） | SMD2020（HG） | SMD2020（HS） | SMD2020（HS） | SMD2020（HS） |
| Panel | 单元板分辨率 Pixel resolution | （W）256*128（H） | （W）208*104（H） | （W）172*86（H） | （W）160*80（H） | （W）128*64（H） | （W）104*52（H） | （W）80*40（H） | （W）64*32（H） |
| 单元板平均功率 Average power | 35W | 26W | 26W | 26W | 26W | 26W | 25W | 18W | |
| 单元板电流 Panel current | 7A 5V | 5.2A 5V | 5.2A 5V | 5.2A 5V | 5.2A 5V | 5.2A 5V | 5A 5V | 3.6A 5V | |
| 单元板重量 Panel weight | 0.4 KG | 0.4 KG | 0.4 KG | 0.4 KG | 0.4 KG | 0.4 KG | 0.4KG | 0.4 KG | |
|
箱体 Cabinet& Bracket |
湿度 Humidity |
10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH |
| 单元板数量 Quantity of panel | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | |
|
单元板接口 Hub connecting |
HUB320 26pin | HUB75 16pin | HUB75 16pin | HUB75 16pin | HUB75 16pin | HUB75 16pin | HUB75 16pin | HUB75 16pin | |
|
最佳视角 Best viewing angle |
Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | Horizontal >140 Vertical>120 | |
| 最佳视距 Best viewing distance | 2-10M | 3-30M | 2-10M | 2-10M | 2-10M | 2-10M | 4-30M | 2-10M | |
| 工作温度 Working temperature | -20-~60 degree | -20-~60 degree | -20-~60 degree | -20-~60 degree | -20-~60 degree | -20-~60 degree | -20-~60 degree | -20-~60 degree | |
| 单元板供电 Panel power supply | 5V60A | 5V40A | 5V40A | 5V40A | 5V40A | 5V40A | 5V40A | 5V40A | |
| 屏体供电 Screen power supply | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | |
|
最大功率 Max power |
<650W/M² | <700W/M² | <650W/M² | <650W/M² | <650W/M² | <650W/M² | <800W/M² | <650W/M² | |
|
平均功率 Average power |
200W | 210W | 200W | 200W | 200W | 200W | 60W | 200W | |
| 电源使用数量 power quantity | 300W/6PCS | 200W/6PCS | 200W/6PCS | 200W/6PCS | 200W/6PCS | 200W/6PCS | 200W/6PCS | 200W/8PCS | |
|
驱动器件 Driving device |
FM6363 Constant current drive |
FM6363 Constant current drive |
FM6363 Constant current drive |
FM6363 Constant current drive |
FM6363 Constant current drive |
ICN2037 Constant current drive |
ICN2037 Constant current drive |
ICN2037 Constant current drive |
|
| 技 |
扫描方式 Drive type |
1/64 Scanning | 1/52 Scanning | 1/52 Scanning | 1/40 Scanning | 1/32 Scanning | 1/26 Scanning | 1/20 Scanning | 1/16 Scanning |
| 术 | 刷新频率 Refresh frequency | ≥3840HZ/S | ≥3840HZ/S | ≥3840HZ/S | ≥3840HZ/S | ≥3840HZ/S | ≥1920HZ/S | ≥1920HZ/S | ≥3840HZ/S |
| 参 |
显示颜色 Display color |
4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 |
| 数 |
亮度 Brightness |
650 cd/M2 | 650cd/M2 | 650cd/M2 | 650 cd/M2 | 650 cd/M2 | 700cd/M2 | 700cd/M2 | 700cd/M2 |
|
使用寿命 Life span |
100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours | |
|
防水等级 Waterproof Grade |
IP33 | IP33 | IP33 | IP33 | IP33 | IP33 | IP33 | IP33 | |
