	type	PH1.953-500	PH2.6-500	PH2.976-500	PH3.91-500	PH4.81-500
Module Specifications	Pixel Pitch	1.953mm	2.604mm	2.976mm	3.91mm	4.81mm
	Pixel Configuration	SMD 1515	SMD 1515	SMD 2020 1415	SMD 2020 1921	SMD 2020 1921
	Module Size	250mmx250mm	250mmx250mm	250mmx250mm	250mmx250mm	250mmx250mm
	Module Resolution	128x128	96x96	84x84	64x64	52x52
	Sqm Pixles	262144	147456	112896	65536	43264
	Module Power	30W	30W	21W	26W	28W
	Driving Method	1/32s	1/32s	1/21s	1/16s	1/13s
	Hub connection	Hub 50pin	Hub 50pin	Hub 50pin	Hub75	Hub75
	Brightness	800 cd/㎡	800 cd/㎡	800 cd/㎡	800 cd/㎡ / 4500 cd/㎡	800 cd/㎡/ 3500 cd/㎡
	Fresh requency	3840hz	1920hz /3840hz	1920hz /3840hz	1920hz /3840hz	1920hz /3840hz
	Surface technics	Magnet with lock	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed
Cabinet Specification	Cabinet Size(WXHXD)	500mmx500mm	500mmx500mm	500mmx500mm	500mmx500mm	500mmx500mm
	Cabinet Resolution	256x256	192x192	168x168	128x128	104x104
	Module Quanity	4pcs	4pcs	4pcs	4pcs	4pcs
	Cabinet Pixels	65,536	36,864	28,224	16,384	10,816
	Average Power Consumption	36W	36W	25W	31W	33.6W
	Max. Power Consumption	120W	120W	84W	104W	112W
	Material	Alum Die-case	Alum Die-case	Alum Die-case	Alum Die-case	Alum Die-case
	Cabinet Weight	7.5kg ±0.5	7.5kg ±0.5	7.5kg ±0.5	7.5kg ±0.5	7.5kg ±0.5
	Product Process	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed	Magnet with lock /Screw Fixed
	Power Connection Type	Cable with connector	Cable with connector	Cable with connector	Cable with connector	Cable with connector
	Signal Connection Type	Singal Cable with connector /RJ45 Direct to received card	Singal Cable with connector /RJ45 Direct to received card	Singal Cable with connector /RJ45 Direct to received card	Singal Cable with connector /RJ45 Direct to received card	Singal Cable with connector /RJ45 Direct to received card
	Received card	HUIDU/ NOVA	HUIDU/ NOVA	HUIDU/ NOVA	HUIDU/ NOVA	HUIDU/ NOVA
	Protective Grade	Front & back side IP33 /Front IP65 Back IP54	Front & back side IP33 /Front IP65 Back IP54	Front & back side IP33 /Front IP65 Back IP54	Front & back side IP33 /Front IP65 Back IP54	Front & back side IP33 /Front IP65 Back IP54
	Power input	110VAC or 220VAC	110VAC or 220VAC	110VAC or 220VAC	110VAC or 220VAC	110VAC or 220VAC
	Surface technics	Module direct connect	Module cable connect /Module direct connect	Module cable connect /Module direct connect	Module cable connect /Module direct connect	Module cable connect /Module direct connect
	Cabinet suggest	500 pro 500 pro+	500 standard 500 pro 500 pro+	500 standard 500 pro 500 pro+	500 economics 500 standard 500 pro 500 pro+	500 economics 500 standard 500 pro 500 pro+

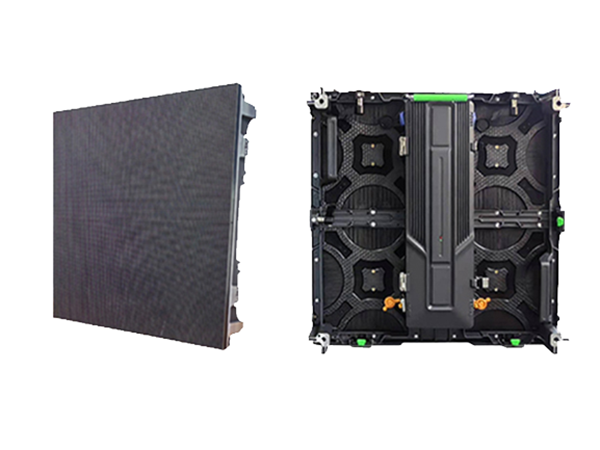

租赁LED显示屏500（专业版）

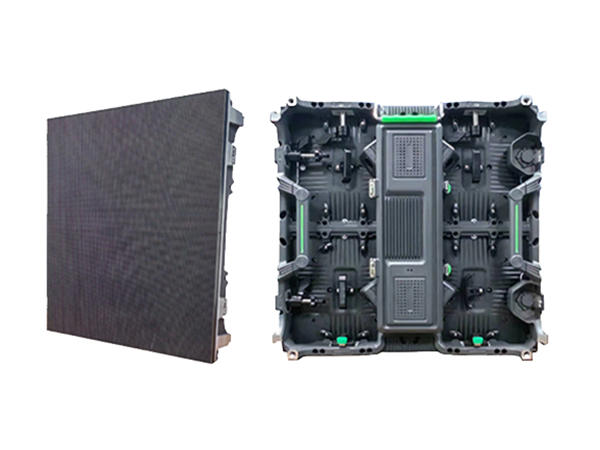

租赁LED显示屏 500(高级版）
租赁LED显示屏硬链接 500(弧形版）
租赁LED显示屏 1000(经济版）
租赁显示屏 1000（专业版）
租赁LED显示屏 1000（高级版）
租赁LED显示屏 1000(弧形版)

Pixel pitch
4.81mm Brightness

1000nits
租赁LED显示屏 480（专业款）
租赁LED显示屏 512（专业款）

租赁LED显示屏 576(专业款）

Parameter：

Support module	P3.0
LED Lamp type	RGB SMD 3in1
LED module quality	9Pcs
Cabinet Size	576mm*576mm
Resolution	192*192
Module Scan	1/32 Scan
Module Lamp	SMD2020
Brightness	800cd/㎡
Fresh requency	>1920hz
Cabinet Weight	9kg
Power input	220V
Operating Temperature	-20℃~60℃
Max power	200W
Port type	HUB75
Horizontal View Angel	>W:140degree,H:120degree
Working Temp	-20℃ to +60℃
Controlling system	Huidu System
Operating System	Windows
IP grade	IP33

租赁LED显示屏 640(专业款）

Parameter：

Support module	P2.5
LED Lamp type	RGB SMD 3in1
LED module quality	8pcs
Support module size	320mm*160mm
Module size	640640mm86mm
Display resolution	0.4㎡
Module Scan	1/32 Scan
Brightness	800cd/㎡
Fresh requency	>3840hz
Cabinet Weight	10kg
Power input	220V
Operating Temperature	-20℃~60℃
Max power	300W
Port type	HUB75
Horizontal View Angel	>W:140degree,H:120degree
Working Temp	-20℃ to +60℃
Controlling system	Huidu system
Operating System	Windows
IP grade	IP33
